Most buyers chooseLiFePO4 (Lithium Iron Phosphate) batteries over lead-acid or NCM lithium batteries for one core reason: ultra-long cycle life. While ordinary lithium batteries only last 800–1200 cycles and lead-acid batteries top 500 cycles, high-quality LiFePO4 cells can achieve 2000–4000 full charge-discharge cycles, with premium industrial-grade cells reaching up to 6000 cycles.
Many customers wonder: Why do LiFePO4 batteries have such a longer lifespan? The secret lies in its unique material properties and standardized precision LiFePO4 cell production process. Every strict manufacturing step reduces internal attenuation, stabilizes chemical structure, and extends battery service life. This guide breaks down the complete LiFePO4 cell production flow and explains the scientific reasons behind its superior cycle durability.
Complete LiFePO4 Cell Production Process (Step-by-Step)
Professional LiFePO4 cell manufacturing is a fully automated, low-dust, low-humidity industrial process. Every procedure is strictly controlled to avoid internal defects that shorten battery life. Below is the standardized production workflow for high-cycle LiFePO4 cells:
1. High-Purity Raw Material Screening & Formula Optimization
The foundation of long-cycle LiFePO4 batteries starts with raw materials. Unlike ordinary lithium batteries that use mixed low-purity materials, qualified LiFePO4 production adopts high-purity iron phosphate and lithium carbonate raw materials with zero impurity residues. Manufacturers add professional carbon coating modifiers and fluorinated lithium salt additives to optimize material activity.
This optimized formula eliminates internal chemical side reactions, prevents capacity attenuation during repeated charging and discharging, and lays the core foundation for long cycle life.
2. Vacuum Slurry Mixing & Uniform Dispersion
The second critical step is vacuum slurry mixing. Professional factories use high-shear vacuum mixers to blend LiFePO4 active materials, conductive agents, and environment-friendly binders evenly. This process completely removes air bubbles and avoids material agglomeration, which is a key difference from low-quality cell production.
Uniform slurry distribution ensures consistent electrochemical reaction across the entire electrode. No local overcharging or over-discharging occurs during use, effectively slowing down cell aging and capacity loss.
3. Precision Electrode Coating, Drying & Calendering
After slurry preparation, automated double-sided coating equipment applies the slurry evenly on aluminum and copper foil. Constant-temperature layered drying removes all residual solvent and moisture, preventing future internal corrosion and gas generation.
Subsequent high-precision calendering and slitting ensure uniform electrode thickness and flatness. This avoids localized stress concentration inside the cell, keeps the internal structure stable during thousands of cycles, and prevents electrode peeling or damage.
4. Dust-Free Cell Stacking & Welding
LiFePO4 cell assembly is completed in a Class 1000 low-dust workshop. Automated stacking machines neatly arrange positive electrodes, high-tough separators, and negative electrodes layer by layer, avoiding dislocation and short-circuit risks.
Precision ultrasonic welding and laser sealing technology fix the tabs and seal the cell casing tightly. The integrated stable internal structure resists expansion and deformation during long-term charge-discharge cycles, maintaining structural integrity for years of use.
5. Vacuum Baking & Accurate Electrolyte Injection
Moisture is the biggest enemy of lithium battery lifespan. All semi-finished cells undergo high-temperature vacuum baking to completely remove residual internal moisture. Then, quantitative electrolyte injection is performed strictly according to cell capacity standards.
Sufficient and pure electrolyte ensures smooth lithium ion migration. It forms a stable SEI protective film on the electrode surface, greatly reducing internal resistance growth and enabling the cell to maintain stable performance after thousands of cycles.
6. Aging Formation & Strict Capacity Grading
After sealing, cells go through low and high-temperature aging and multiple charge-discharge formation processes to activate internal chemical substances fully. Finally, professional testing equipment conducts precise capacity testing, internal resistance detection, and voltage screening.
Only cells with consistent capacity, internal resistance, and voltage are selected for assembly. Uniform cell parameters avoid single-cell over-discharge in battery packs, preventing overall performance degradation and extending the whole pack’s cycle life.
Core Reasons: Why LiFePO4 Cells Have Far Longer Cycle Life
Combined with the professional production process, four inherent advantages make LiFePO4 batteries outperform NCM lithium batteries and lead-acid batteries in cycle durability:
1. Ultra-Stable Chemical Crystal Structure
LiFePO4 material has a unique olivine crystal structure with extremely high structural stability. During repeated lithium ion deintercalation and embedding (charging and discharging), the crystal structure will not collapse or deform. In contrast, ternary lithium batteries are prone to structural collapse and rapid capacity attenuation after hundreds of cycles.
2. Zero Thermal Runaway & Low Attenuation
LiFePO4 cells feature excellent thermal stability, resisting high-temperature decomposition and thermal runaway. The standardized production process further reduces internal impurities and defects, ensuring extremely low capacity attenuation. Even after 3000+ cycles, the cell can retain more than 80% of its original capacity.
3. Stable SEI Protective Film Formed by Precision Production
Strict vacuum treatment, pure electrolyte injection, and scientific aging processes help form a dense, stable SEI film on the electrode surface. This protective layer isolates side reactions between the electrode and electrolyte, effectively inhibiting internal resistance increase and extending the cell’s service life.
4. No Memory Effect & Deep Discharge Resistance
High-quality manufactured LiFePO4 cells have zero memory effect, supporting 100% deep discharge without damage. Unlike lead-acid batteries that age rapidly under deep discharge, LiFePO4 cells maintain stable cycle performance even with daily full charge and full discharge, perfectly adapting to long-term frequent use in solar storage, RV, and marine scenarios.

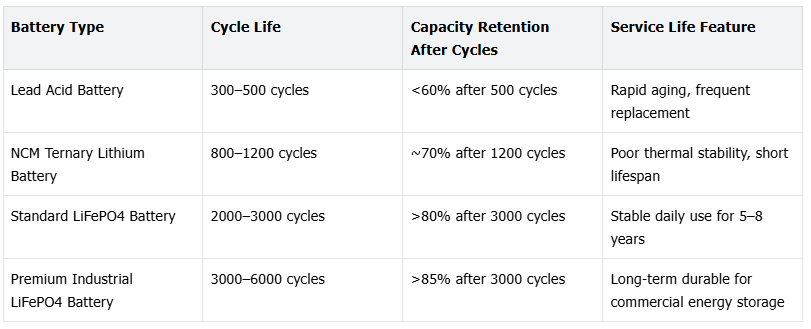

Cycle Life Comparison: LiFePO4 vs Other Batteries
Why Production Process Determines Battery Lifespan
Many low-cost LiFePO4 batteries on the market have short lifespans precisely because they cut corners in production: impure raw materials, uneven slurry mixing, poor sealing, and simplified aging processes lead to rapid capacity attenuation and bulging failure.
Strict, automated standardized production is the core guarantee for LiFePO4’s long cycle life. Every refined process reduces internal defects, stabilizes chemical and structural performance, and realizes ultra-long service life far beyond traditional batteries.
Final Verdict
The long cycle life of LiFePO4 batteries is not only determined by its superior material characteristics but also benefits from rigorous, high-precision cell production processes. Stable crystal structure, low attenuation performance, and anti-aging manufacturing technology make LiFePO4 the most cost-effective battery for solar energy storage, RVs, boats, UPS backup power, and commercial off-grid systems.
Looking for high-cycle-life LiFePO4 batteries with strict production standards? Our 12V/24V/48V LiFePO4 cells and battery packs are manufactured with full automated precision processes, featuring 3000+ long cycles, complete CE/FCC/UN38.3 certifications, and stable long-term performance. Contact us for free samples and customized wholesale solutions!
