LiFePO4 Solar Batteries For Energy Storage System

GET A QUOTE
  • LiFePO4 battery 12.8V 20AH
  • LiFePO4 battery 12.8V 20AH

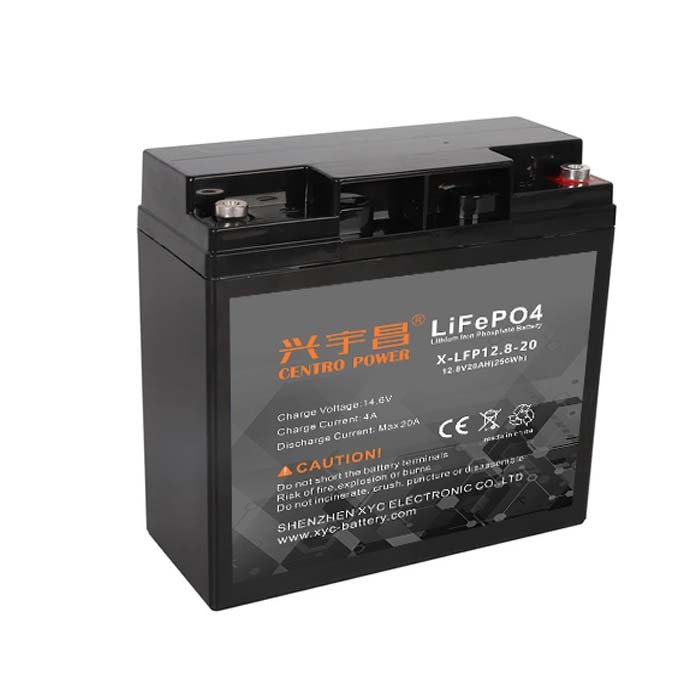

LiFePO4 battery 12.8V 20AH

XYC X-LFP series batttery packs range from 12V,24V,36V to 48V with different capacities, designed with the safest LiFePO4 battery chemistry, typically for replacing lead-acid/ GEL/AGM. batteries. All batteries are integrated with BMS and with IP65 waterproof casings, with balancing function and optional communication protocols(Bluetooth and CANBus/RS485/RS232/UART/SMBus/iic), all MUST-have protections implemented such as over charge protections, over discharge protections, over current protections over/low temp.protections, short-short-circuit protections and so on, manintenance-free and simple to use -drop in/plug & play. All batteries support daisy-chain connection(series and parallel connections)
Model
X-LFP12.8-20
Nominal Voltage
12.8V
Nominal Capacity(20°C)
20Ah
Energy
256Wh
Dimensions
L181*W76*H165mm
Weight
About 3.2kg
Terminal
M8
Max. Charge/Discharge Current
20A/20A
Operating Voltage
10V~14.6V
Maximum Modules in Series/Parallel
4S4P
Case Material
ABS
Cycle Life
>2000cycles
Operating Temperature Range
Charge:0°C~45°C, Discharge:-20°C~65°C, Storage:-20°C~40°C
Applications
UPS, SOLAR,led, EV
  • LiFePO4 battery 12.8V 20AH
